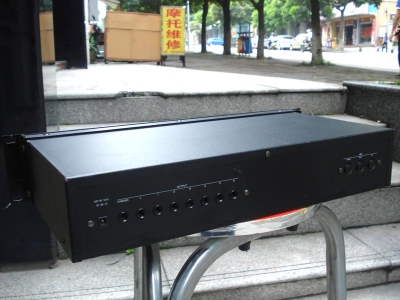

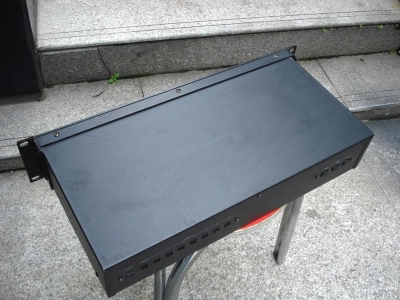

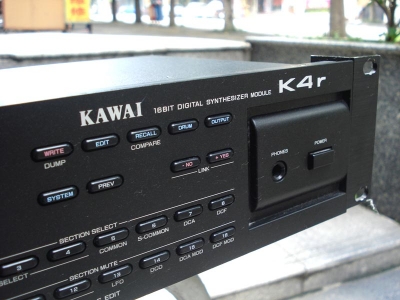

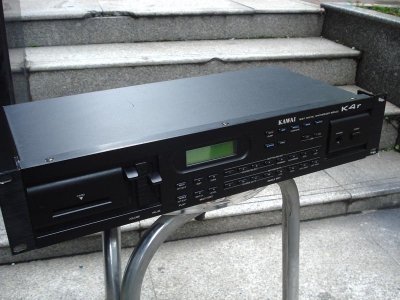

卖KAWAI K4R 音源一台```````````````````````

WEIDO

原装无修

电源9V 送电源

友友

没有查到详细参数呢。
介绍一下？

WEIDO

http://www.matrixsynth.com/old/k4r.htm


SYNTHESIZER MODULE - 64 SINGLE PATCHES/64 MULTI PATCHES

FEATURES

FROM THE OWNER'S MANUAL

The K4 is a 61 key touch-sensitive synthesizer equipped with a DMS (Digital Multi Spectrum) tone generator capable of up to 16 notes of polyphony when set at two Sources per tone. The K4r is a 19 inch, 2U rack-mount module version.

256 high quality internal waveforms
The K4/K4r has 96 CD (Digital Cyclic) waveforms composed of as many as 128 harmonics, and a total of 160 PCM waveforms, for a total of 256 waveforms. Because the K4/K4r's internal waveforms are reproduced using 16-bit quantization, noise and distortion are virtually inaudible.

DRUM Section
The K4/K4r has its own DRUM Section which can be controlled independently of SINGLE Patches or the eight Sections of a MULTI Patch. The 61 keys from C1-C6 on the keyboard may be assigned freely to produce these tones.

Internal EFFECT (K4) and mising capability (K4r)
The K4 has 16 types of internal effects, including Reverb, Delay and Overdrive, etc.. In MULTI PLAY, the depth of the effect may be set for each tone.

Realistic touch response
The K4/K4r has the feeling of an acousic piano keyboard, a feature which has made the Kawai K series so popular. In addition, Velocity, Aftertouch, Release Velocity and Keyboard Scaling features allow the expression of the most minute touch on the keyboard.

MULTI PLAY capability
Eight SINGLE tones may be reproduced by the DMS tone generator, freely combining the Layer, Velocity Switch and Split functions, enabling far more beautiful layered and split sounds than have ever been possible before.

Variable Multi-Timbral capability
In the MULTI PLAY mode, each tone may be set to a specific MIDI channel, allowing the K4/K4r to function as though it were eight MIDI tone generators (or nine with the DRUM Section). The Variable Multi-Timbral function also allows the voices of each Section to be played simultaneously.

INDIVIDUAL OUTPUT function (K4r only)
The K4r is equipped not only with two stereo output jacks, but with six separate output jacks as well to allow the connection of external effects units to create high quality sound.

LINK
Eight patches from those in the unit may be selected and stored together. This function is used, for instance, when multiple tones are to be used in sequence. When arranged in the order in which they are to be called up, the operator may easily change tones from one to the next while playing.

MIDI
By connecting an external MIDI device to the MIDI jack, the K4/K4r may be used as a tone generator module with drums, or to control the external MIDI device.

Card
A card permits an increased number of tones to be placed in memory. One card can hold 64 SINGLE Patches, 64 MULTI Patches, the DRUM Section and EFFECT or OUTPUT Settings.

SINGLE PATCH PARAMETERS

EDIT GROUP
VOLUME VALUE: 0-100
EFFECT (K4)/OUTPUT (K4R) VALUE: 1-32
SUBMIX CH VALUE: A-H
NAME 1ST-10TH VALUE: VARIOUS CHARACTERS
COMMON GROUP
SOURCE MODE VALUE: NORM, TWIN, DBL
AM (RING MODULATION) VALUE: ON,OFF
POLY MODE VALUE: PLY1, PLY2, SOL1. SOL2
BENDER RANGE VALUE: 0-12
PRESS FREQ VALUE: -50 TO 0 TO +50
WHEEL ASSIGN VALUE: VIB, LFO, DCF
WHEEL DEPTH VALUE: -50 TO 0 TO +50
AUTO BEND VALUE: -50 TO 0 TO +50
TIME (FOR AUTO BEND) VALUE: 0-100
DEPTH VALUE: VALUE: -50 TO 0 TO +50
KS TIME VALUE: -50 TO 0 TO +50
VEL DEPTH VALUE: -50 TO 0 TO +50
LFO GROUP
VIBRATO SHAPE VALUE: TRI, SAW, SQR, RND
VIBRATO SPEED VALUE: 0-100
VIBRATO DEPTH VALUE: -50 TO 0 +50
VIBRATO PRESS DEPTH VALUE: -50 TO 0 TO +50
LFO SHAPE VALUE: TRI, SAW, SQR, RND
LFO SPEED VALUE: 0-100
LFO DELAY VALUE: 0-100
LFO DEPTH VALUE: -50 TO 0 TO +50
LFO PRESS DEPTH VALUE: -50 TO 0 TO +50
SOURCE COMMON (S-COMMON) GROUP
DELAY VALUE: 0 TO 100
VEL (VELOCITY) CURVE VALUE: 1 TO 8
KS (KEYBOARD SCALING) CURVE VALUE: 1 TO 8
DCO GROUP
WAVE VALUE: 1 TO 96 (C), 97 TO 256 (P)
KEY TRACK VALUE: ON OR OFF
COARSE VALUE: -24 TO 0 TO +24
FINE VALUE: -50 TO 0 TO +50
FIXED KEY VALUE: C-1 TO G8
PRESSUE FREQUENCY VALUE: ON OR OFF
VIBRATO/AUTO BEN VALUE: ON OR OFF
DCA GROUP
LEVEL VALUE: 0 TO 100
ATTACK VALUE: 0 TO 100
DECAY VALUE: 0 TO 100
SUSTAIN VALUE: 0 TO 100
RELEASE VALUE: 0 TO 100
DCA MODULATION (DCA MOD) GROUP
VEL (VELOCITY) DEPTH VALUE: -50 TO 0 TO +50
PRESSURE DEPTH VALUE: -50 TO 0 TO +50
KS (KEYBOARD SCALING) DEPTH VALUE: -50 TO 0 TO +50
TIME MODULATION VELOCITY (VEL) VALUE: -50 TO 0 TO +50
TIME MODULATION RELEASE VELOCITY VALUE: -50 TO 0 TO +50
TIME MODULATION KS VALUE: -50 TO 0 TO +50
DCF GROUP
CUTOFF VALUE: 0 TO 100
RESONANCE VALUE: 0 TO 7
VELOCITY DPTH (VEL DEPTH) VALUE: -50 TO 0 +50
PRESSURE DEPTH VALUE: -50 TO 0 +50
KS DEPTH VALUE: -50 TO 0 TO +50
LFO ON OR OFF
DCF MODULATION (DCF MOD) GROUP
ENVELOPE DEPTH VALUE: -50 TO 0 TO +50
VELOCITY DEPTH (VEL DEPTH) VALUE: -50 TO 0 TO +50
ATTACK VALUE: 0 TO 100
DECAY VALUE: 0 TO 100
SUSTAIN VALUE: 0 TO 100
RELEASE VALUE: 0 TO 100
TIME MODULATION VELOCITY (ATTACK) VALUE: -50 TO 0 TO +50
TIME MODULATION RELEASE VELOCITY VALUE: -50 TO 0 TO +50
TIME MODULATION KS VALUE: -50 TO 0 TO +50
EDITING CAPABILITIES
COPY FROM SINGLE VALUE: SINGLE TONE BANK
TONE WRITE VALUE: SINGLE TONE BANK

MULTI PATCH PARAMETERS

EDIT GROUP
VOLUME VALUE: 0 TO 100
EFFECT PATCH (OUTPUT PATCH) VALUE: 1-32
NAME (1ST THROUGH 10TH) VALUE: VARIOUS CHARACTERS
INST GROUP
SINGLE PATCH SELECTION VALUE: INT - IA TO ID-16, EXT - EA-1 TO ED-16
ZONE GROUP
ZONE LO/HI VALUE: C-2 TO G8
VEL SW (VELOCITY SWITHC) VALUE: SOFT, LOUD, OR ALL
SEC CH(SECTION CHANNEL) GROUP
REC CH VALUE: 1 THROUGH 16
PLAY MODE (K4 ONLY) VALUE: KYBD, MIDI, MIX
LEVEL GROUP
LEVEL VALUE: 0 TO 100
TRANSPOSE VALUE: -24 TO 0 TO +24
TUNE VALUE: -50 TO 0 TO +50
SUBMIX CH VALUE: A THROUGH H
WRITING MULTI PATCHES
TONE WRITE VALUE: MULTI TONE BANK

DRUM PATCH PARAMETERS

COMMON PARAMETERS
VOLUME VALUE: 0 TO 100
MIDI RCV CH (RECEIVING CHANNEL) VALUE: 1 THROUGH 16
VEL (VELOCITY) DEPTH VALUE: -50 TO 0 TO +50
TONE PARAMETERS
KEY VALUE: C1 TO C6
WAVE S1 AND S2 VALUE: 1 THROUGH 256
DECAY S1 AND S2 VALUE: 1 TO 100
TUNE VALUE: -50 TO 0 TO +50
LEVEL VALUE: 0 TO 100
SUBIX CH VALUE: A TO H
COPY VALUE: C1 TO C6
WRITE INT/EXT

EFFECTS (K4 KEYBOARD VERSION ONLY)

1.REVERB 1 5.GATE REVERB 9.CHORUS 13.NORMAL DELAY+ NORMAL DELAY
2.REVERB 2 6.REVERSE GATE 10.OVER DRIVE+ FLANGER 14.NORMAL DELAY+ STEREO PAN.DELAY
3.REVERB 3 7.NORMAL DELAY 11.OVER DRIVE+ NORMAL DELAY 15.CHORUS+ NORMAL DELAY
4.REVERB 4 8.STEREO PANPOT DELAY 12.OVER DRIVE+ REVERB 16.CHORUS+ STEREO PAN.DELAY

OUTPUT PATCHES (K4R ONLY)

FROM P.71 OF THE OWNER'S MANUAL

"While the k4r has no EFFECTs, it is equiped with six independent OUTPUT jacks as well as left and right Stereo jacks (the K4 has only left and right Stereo jacks). The OUTPUT Patch is where data on how SINGLE Patches, MULTI Patches, and the DRUM Section are connected to these eight output jacks is stored. The only parameter within SUBMIX CHs is PAN. The K4r can be used in the same way as the k4"

SYSTEM PROGRAMMING

SYS (SYSTEM) GROUP
TUNE VALUE: -50 TO 0 TO +50
TRANSPOSE VALUE: -12 TO 0 TO +12
LOCAL CONTROL (K4 ONLY) VALUE: ON OR OFF
VELOCITY SWITCH POINT (VEL SW POINT) VALUE: 1 TO 128
TRS (TRANSMIT) GROUP
TRANSMIT CHANNEL (TRS CH) VALUE: 1 TO 16
PROGRAM CHANGE (TRS PGM) VALUE: ON OR OFF
PRESSURE (TRS PRS) (K4 ONLY) VALUE: ON OR OFF
BENDER (TRS BND) (K4 ONLY) VALUE: ON OR OFF
MODULATION (TRS MOD) (K4 ONLY) VALUE: ON OR OFF
HOLD (TRS HOLD) (K4 ONLY) VALUE: ON OR OFF
VELOCITY (TRS VEL) (K4 ONLY) VALUE: ON OR OFF
RCV (RECEIVE) GROUP
RECEIVE CHANNEL (RCV CH) VALUE: 1 TO 16
OMNI VALUE: ON OR OFF
PROGRAM CHANGE (RCV PGM) VALUE: OFF, NORM, SECT OR LINK
PRESSUER (RCV PRS) VALUE: ON OR OFF
BENDER (RCV BND) VALUE: ON OR OFF
MODULATION (RCV MOD) VALUE: ON OR OFF
VOLUME (RCV VOL) VALUE: OFF, NORM, SECT
HOLD (RCV MOD) VALUE: ON OR OFF
VELOCITY (RCV VEL) VALUE: ON OR OFF
EXCLUSIVE (RCV EXCL) VALUE: ON OR OFF

友友

灵格斯自动翻译：
合成器模块- 64单PATCHES/64多斑具有从车主手册了K4是一个61键触感合成器配备了每一个DMS（数字多频）音源发生器能够注意到了两个至16时集合在复音基调。该K4r是一个19英寸的2U机架式模块的版本。256高品质的内部波形的K4/K4r拥有96光盘（数字循环）波形组成多达128个谐波，以及总共160的PCM波形，以总256个波形。由于K4/K4r的内部波形转载使用16位量化，噪声和失真几乎听不到。鼓科的K4/K4r有其自己的鼓组，可独立控制的多单补丁或修补的八节的。的C1 - 61键的键盘从C6的可自由分配产生这些音调。内部效应（的K4）和mising能力（K4r）等了K4有16种内部效果，包括混响，延迟和高速。在多媒体播放，效果可能会深入的基调定为每个。现实的触摸响应的K4/K4r有键盘的感觉一acousic钢琴，一个流行的功能，它已使川井K系列等。此外，速度，触后，释放速度和缩放功能，让键盘键盘表达触及最分钟。多媒体播放能力的8个单一色调，可复制发电机由DMS基调，自由结合层，速度开关和斯普利特职能，使美丽的层次，更分裂的声音比以往任何时候都被有可能的模式之前。变多播放的音色能力在多，每个音可以设置为一个特定的MIDI通道，允许K4/K4r发挥作用，就好像是8的MIDI音发电机（或9个鼓组）。变多音色功能还允许每个科的声音，同时要发挥。单独的输出功能（K4r只）的K4r配备插孔不仅与2个立体声输出，但与6个独立的输出插孔，以及允许的连接影响单位对外创造出高品质的声音。联接八单位从这些补丁中可能会被选中并存储在一起。此功能被使用，例如，当多个音调要顺序使用。当排列的次序，它们被称为起来，经营者可以很容易改变一个音调，而从下一个播放MIDI插孔。的MIDI通过连接外部MIDI设备的，该K4/K4r可作为一个音发电机设备模块，鼓，或控制外部MIDI。许可证一卡一卡的色调增加数量，内存放在研究。一卡可容纳64个单补丁，64多补丁，鼓组和效果或输出设置。单补片参数编辑组数量价值：0-100影响（的K4）/输出（K4R）值：1-32 SUBMIX甲烷价值：阿名称1 - 10价值：各种特征常见的组发稿式的价值：规范，双，后海湾干线上午（环调制）价值：开，关聚式的价值：PLY1，PLY2，SOL1。 SOL2弯管量程值：0-12出版社引入FREQ值：-50至0至50轮分配价值：VIB，低频振荡，DCF的轮式深度值：-50至0至50自动弯曲值：-50至0至50时间（自动弯曲）值：0-100深度值：值：-50至0至50堪萨斯时间价值：-50至0至50的Vel深度值：-50至0至50的LFO集团颤音形状价值：三，表面声波，参青方，根治性颈清扫术颤音速度值：0-100颤音深度值：-50 0 50颤音新闻深度值：-50至0至50 LFO的形状值：三，表面声波，参青方，根治性颈清扫术LFO的速度价值：0-100的LFO延迟值：0-100的LFO深度值：-50至0至50的LFO新闻深度值：-50至0至+50源常见（第S -常见）集团延迟值：0到100的Vel （速度）曲线值：1至8堪萨斯州（键盘结垢）曲线值：1至8检查官集团波值：1至96（丙），97至256（P）的重点田径值：ON或OFF野值：-24为0至+24罚款的价值：-50至0至+50定额关键值：C - 1至八国集团PRESSUE频率值：

WEIDO

降价```````````````````````继续出`````````````````

WEIDO

降价```````````````````````继续出`````````````````

友友

成色很好，可惜落伍了
